Reach-In Stability Chamber

20°C to 60°C 40%RH to 95%RH

Engineered for Accuracy, Built for Performance.

Stability chambers that set the standard.

Compliance

ICH Q1A (R2) | US-FDA 21 CFR Part 11 | WHO | EU GMP

Pharmaceuticals

Healthcare

Food & Beverages

Agriculture

Oil & Gas

Cosmetics

The Nihaar Advantage

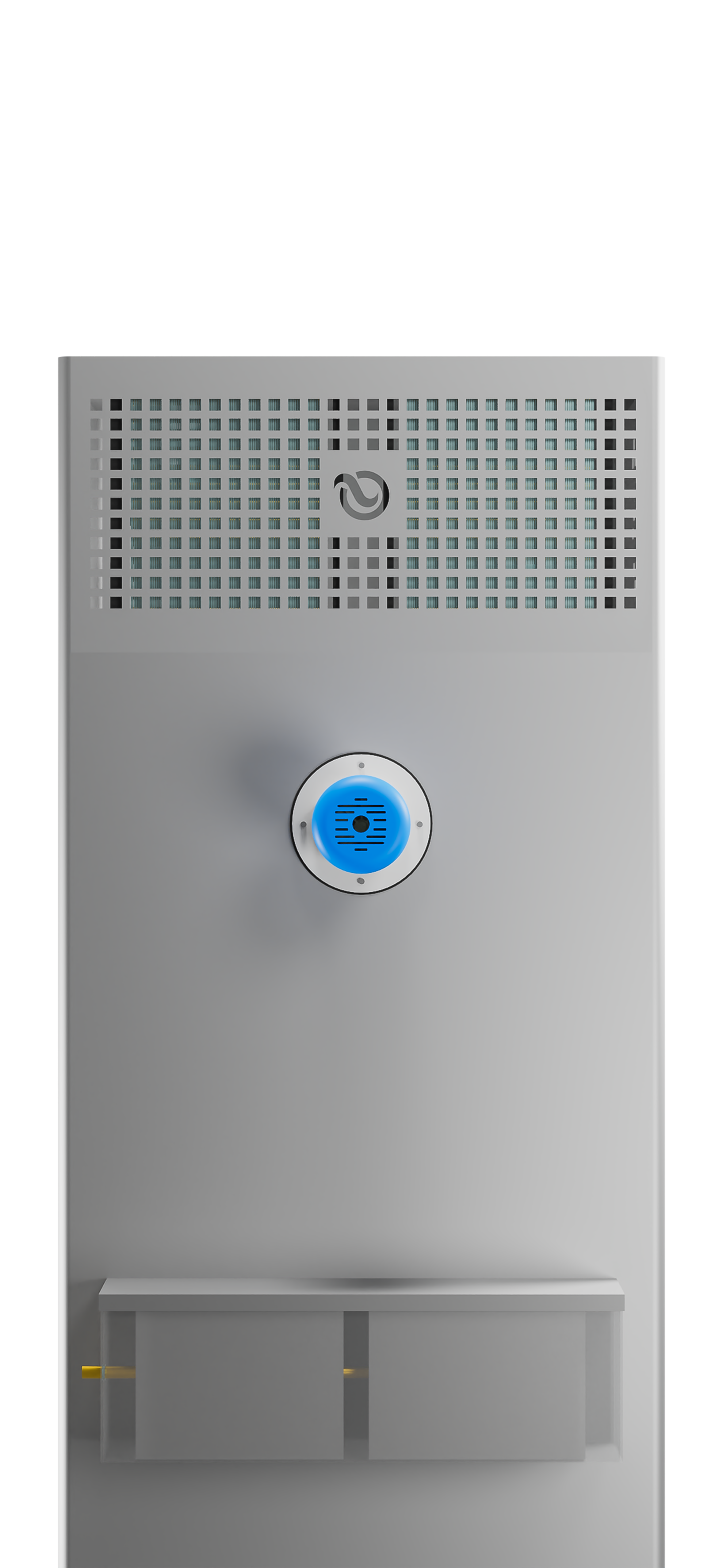

Standby Cooling and Humidification System

Nihaar Stability Chambers feature an advanced standby cooling system that automatically activates if the primary system fails, ensuring uninterrupted operation. Designed for pharmaceutical stability studies, this fail-safe mechanism maintains precise temperature and humidity control, preventing disruptions and safeguarding product integrity, ensuring zero downtime.

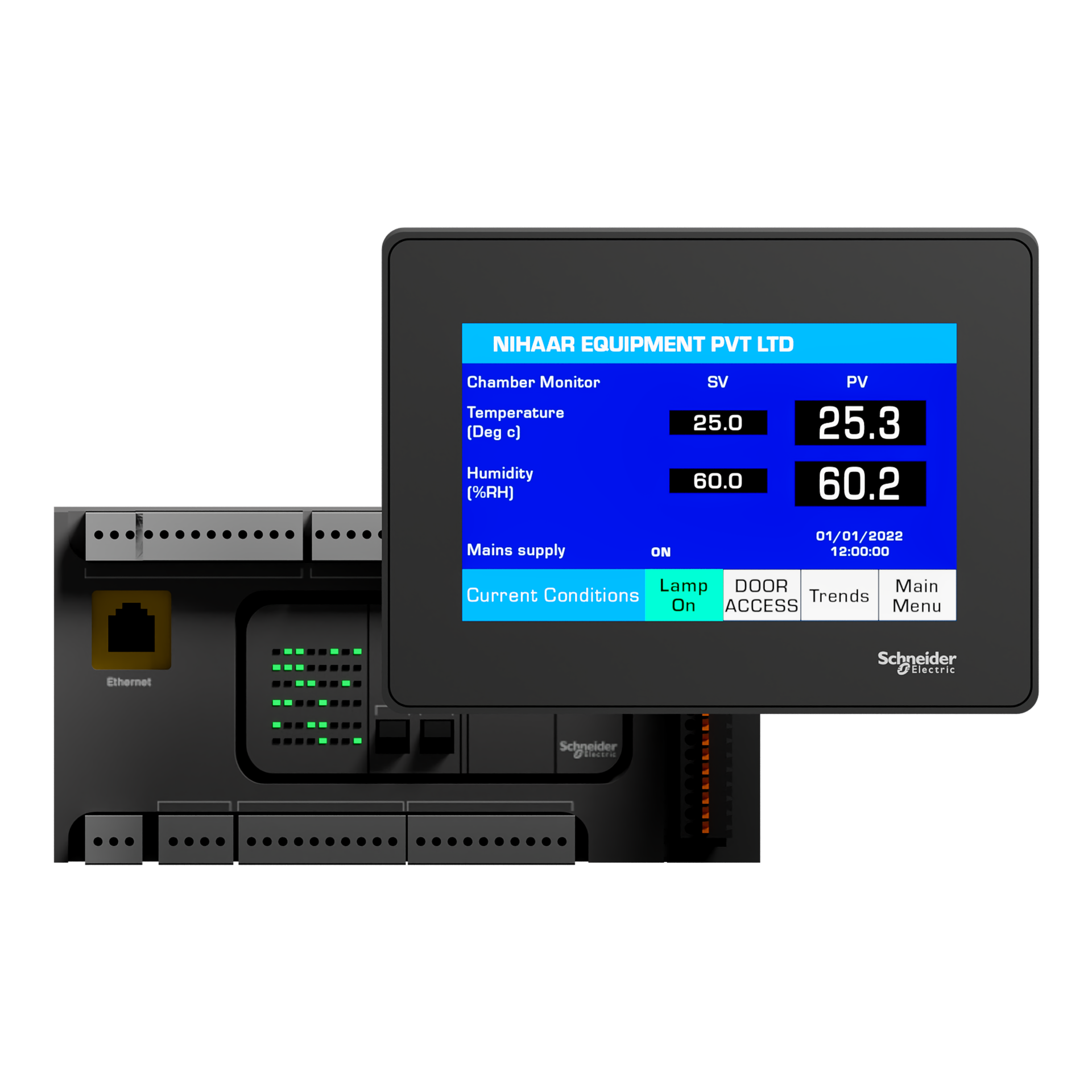

PLC with 7” Touchscreen Display

Nihaar Stability Chambers are equipped with a PC-based control system featuring a 7-inch touchscreen display for real-time monitoring. Users can configure, check parameters, and track chamber performance with ease, ensuring seamless compliance and operational efficiency.

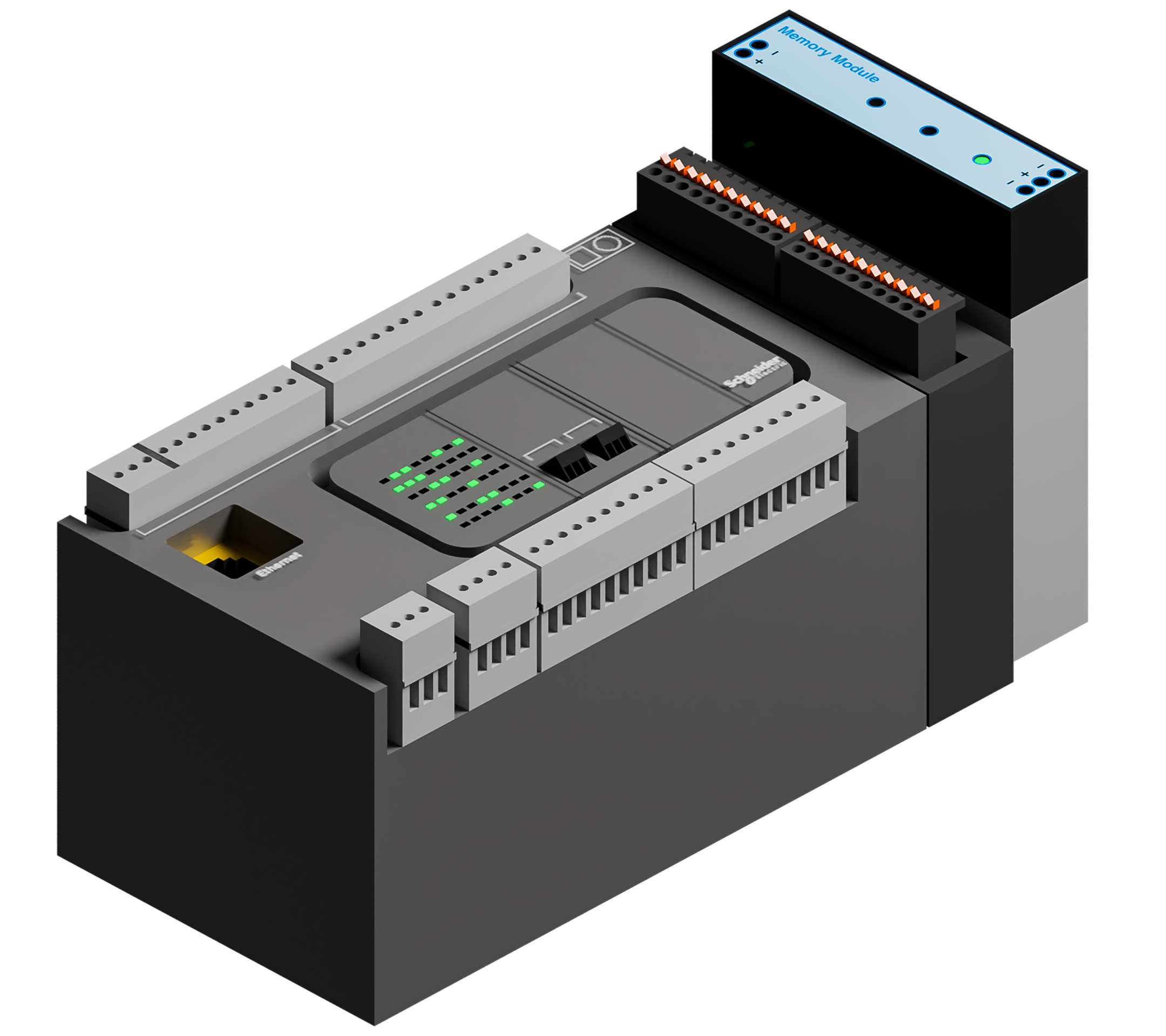

30 Day In-built Data Backup

Stay secure with our 30-day in-built data backup, ensuring uninterrupted record-keeping even if the equipment disconnects from the software. With automatic storage directly on the PLC, your stability study data remains safe, compliant, and always accessible when you need it.

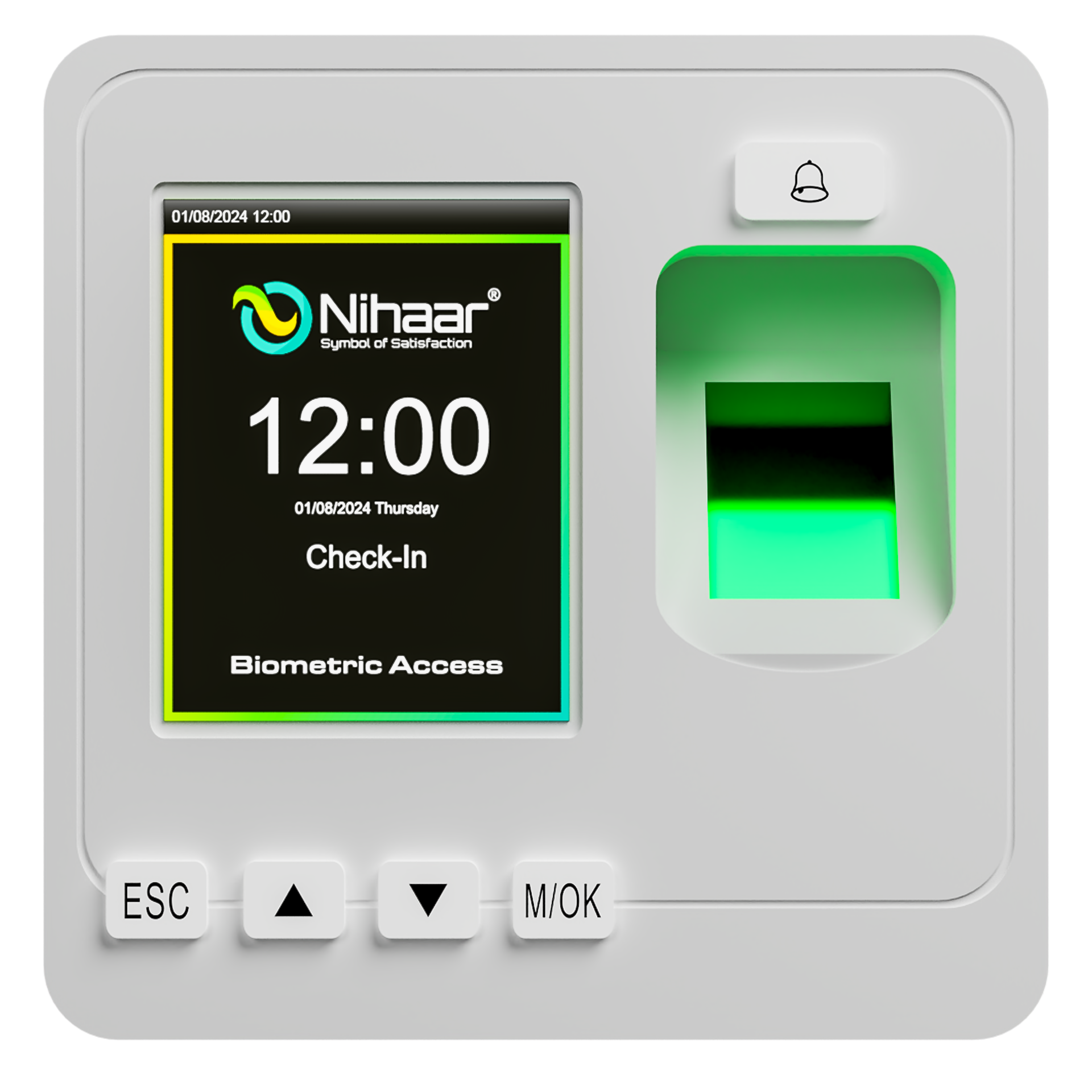

Biometric Door Access Control

Protect your stability studies with Biometric Door Access Control, allowing only authorized personnel to access the chamber. This advanced security feature prevents unauthorized handling, safeguards sensitive samples, and ensures compliance with industry regulations—all with a simple fingerprint scan.

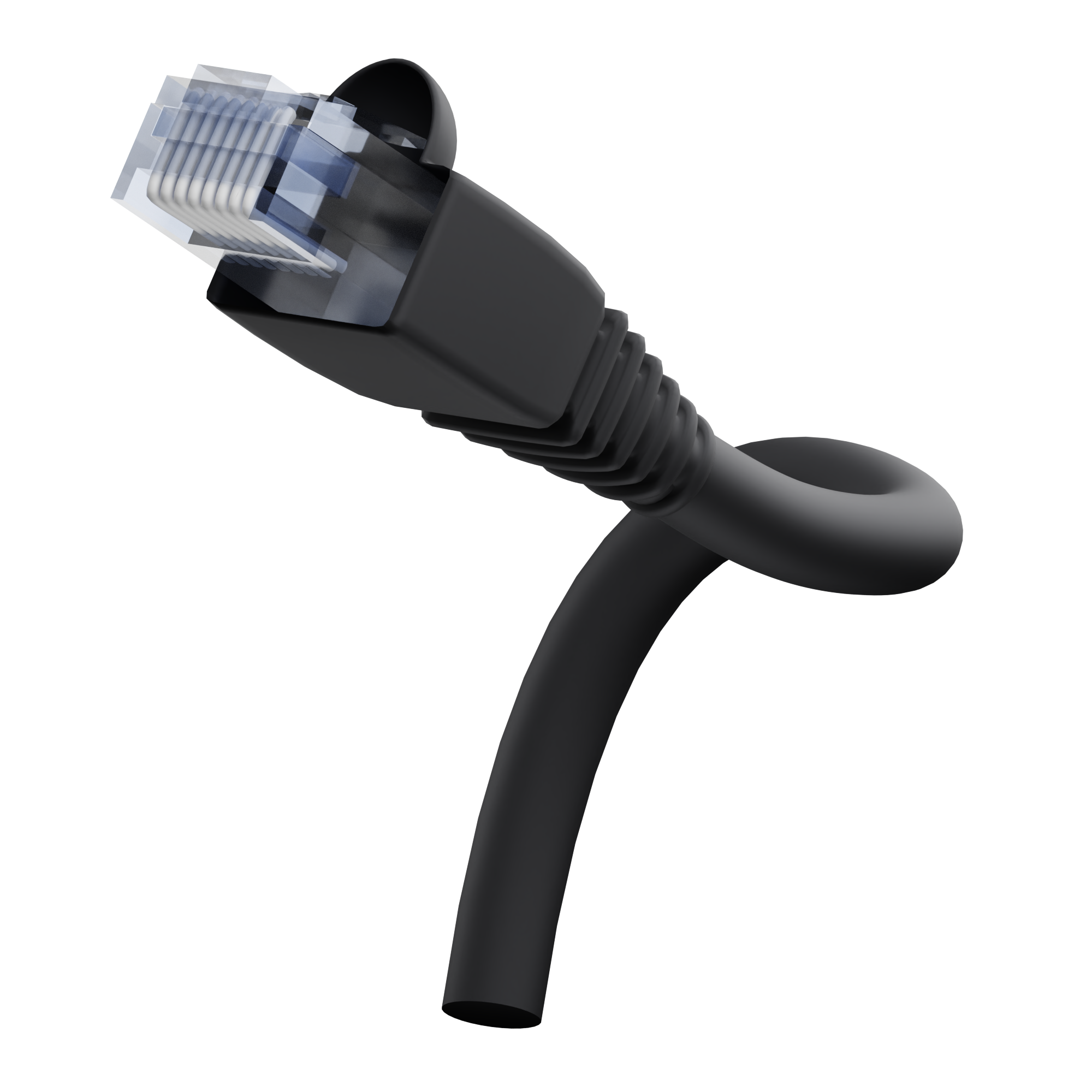

Real-Time Monitoring via Ethernet

Effortlessly monitor and manage your stability chamber with Ethernet communication and data transfer. This feature enables real-time remote tracking, ensuring smooth operations and compliance with regulatory standards. Stay connected, stay in control.

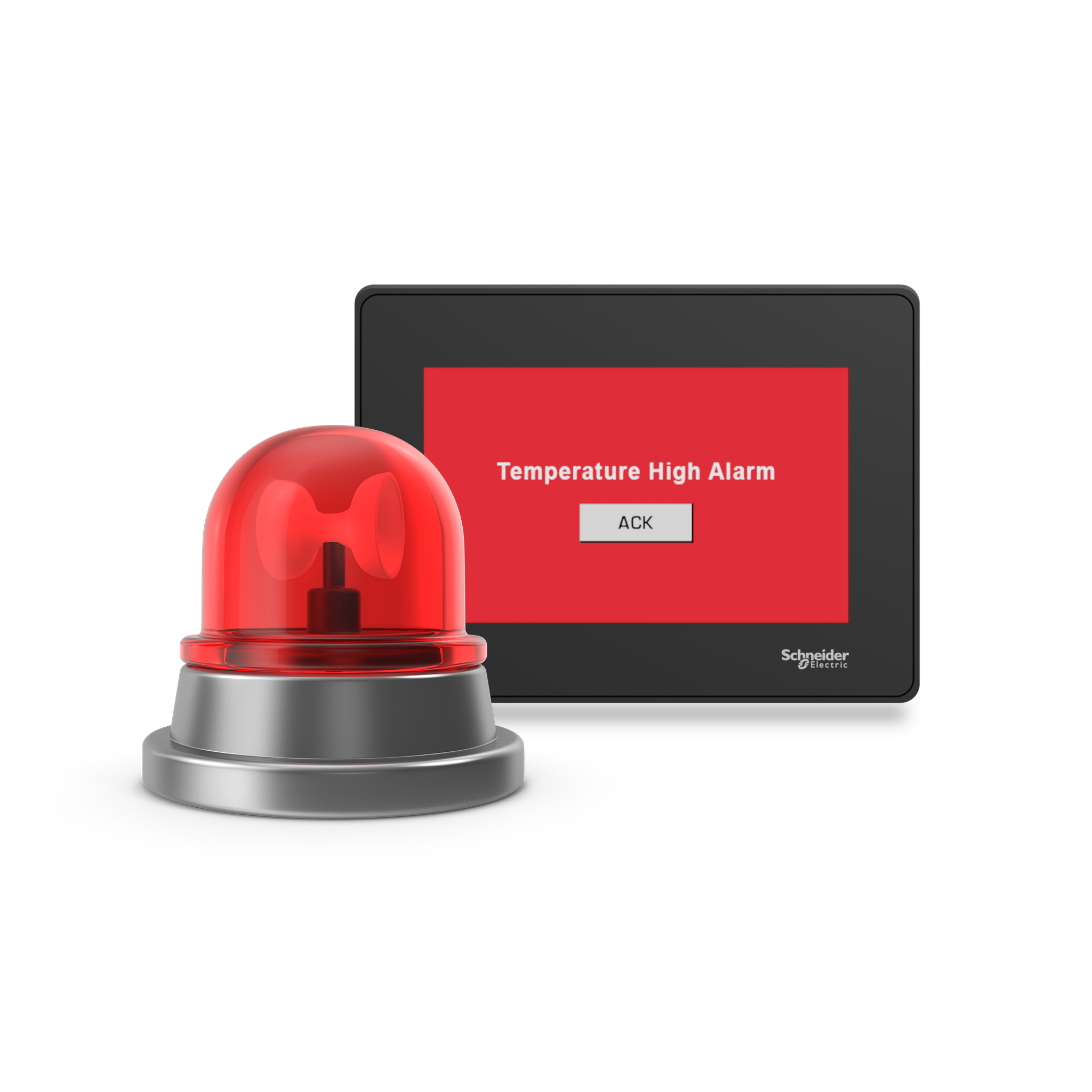

Instant Live Alarms for Critical Safety

Stay ahead of any deviations with live alarms, designed to provide instant audio-visual notifications for temperature, humidity, and system status changes. This real-time alert system ensures quick response, minimized risk, and maximum protection for your stability studies, keeping your operations compliant and secure.

Smart LED Status Indicator

Easily identify chamber conditions at a glance with our Visual LED indicator. This smart feature displays a clear in-use or out-of-range status, ensuring quick assessments, faster response times, and uninterrupted compliance with stability testing requirements.

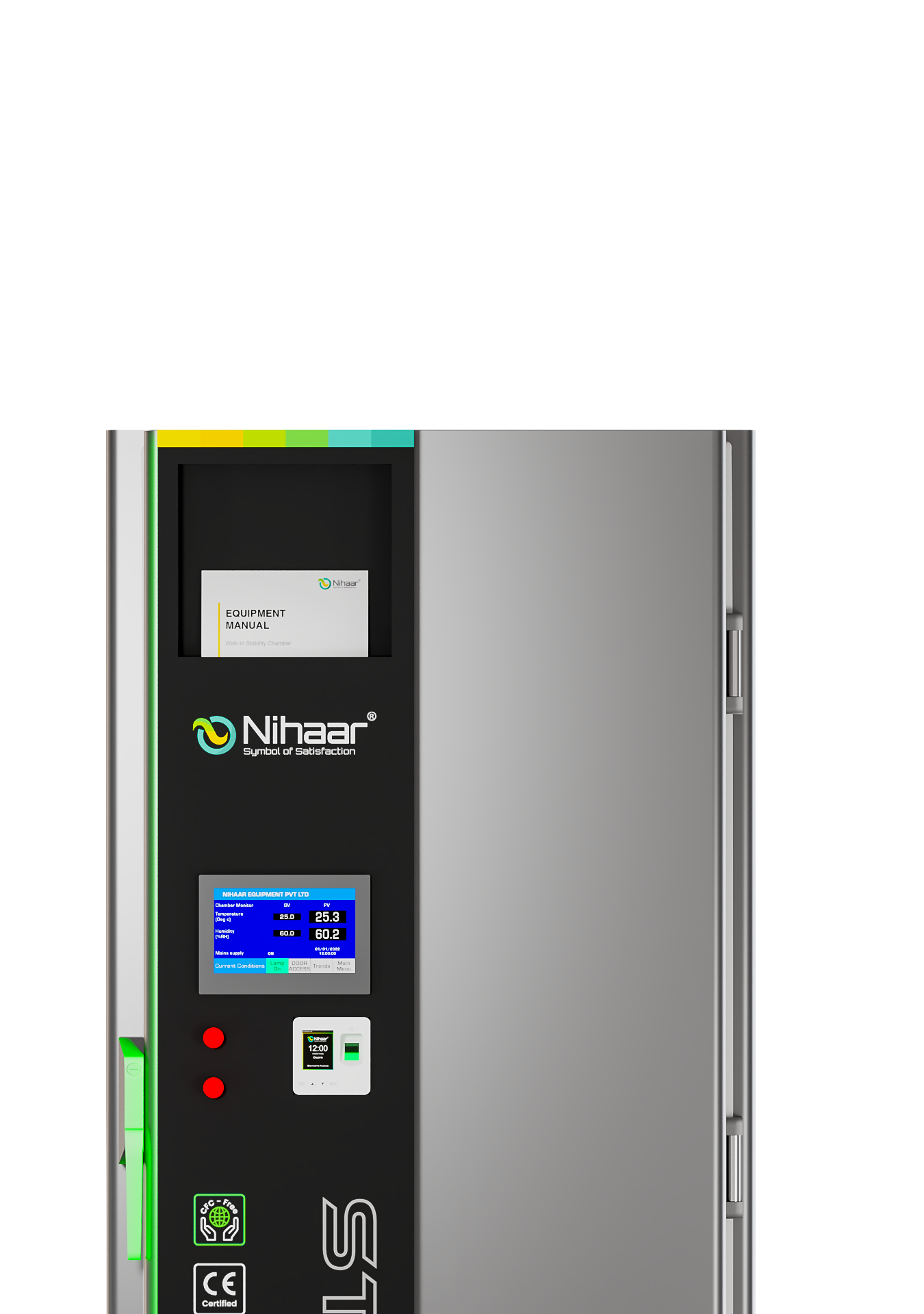

Integrated Document Holder

Keep essential records within reach with our integrated document holder. Designed for convenience, this feature ensures that SOPs, calibration certificates, and compliance documents are securely stored and readily available for quick reference during audits and daily operations.

Advanced Safety Systems

Our stability chambers are equipped with cutting-edge safety mechanisms to safeguard your samples and ensure uninterrupted operation. From emergency temperature shutdowns to fail-safe features designed to maintain reliability, prevent disruptions, and keep your processes fully compliant.

Technical Features

±0.5°C

Temperature Accuracy

±1.0°C

Temperature Uniformity

±2% RH

Humidity Accuracy

±3% RH

Humidity Uniformity

Design Content

Control Content

Humidification Content

Refrigeration Content

Safety Content

Model No	Capacity	Internal Dimensions	External Dimensions	Tray Size	Tray Quantity
	(in liters)	H x W x D (mm)	H x W x D (mm)	(mm)
NEPL 208RT10SI	200	600 x 600 x 600	1260 x 770 x 1090	560 x 560	2
NEPL 212RT10SI	324	900 x 600 x 600	1560 x 770 x 1090	560 x 560	3
NEPL 216RT10SI	430	1200 x 600 x 600	1860 x 770 x 1090	560 x 560	4
NEPL 221RT10SI	600	1200 x 700 x 700	1860 x 870 x 1240	660 x 660	4
NEPL 228RT10SI	800	1200 x 800 x 800	1860 x 970 x 1340	760 x 760	4
NEPL 234RT10SI	1000	1500 x 800 x 800	2160 x 970 x 1340	760 x 760	5
NEPL 254RT10SI	1500	1500 x 1600 x 600	2160 x 1770 x 1140	670 x 560	10
NEPL 271RT10SI	2000	1500 x 1600 x 800	2160 x 1770 x 1340	670 x 760	10

* Custom Sizes can be provided upon request.

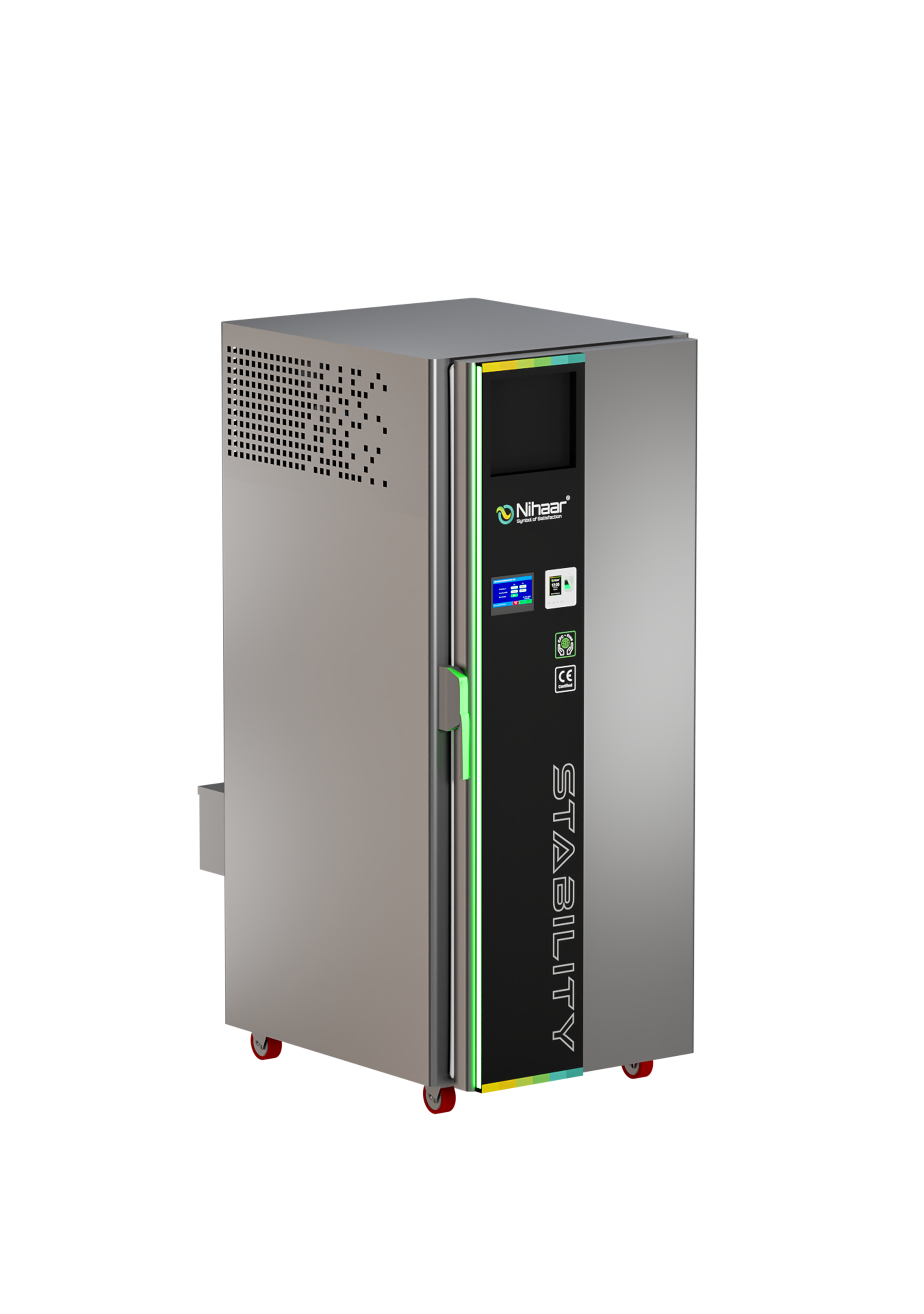

Angled View

Front View

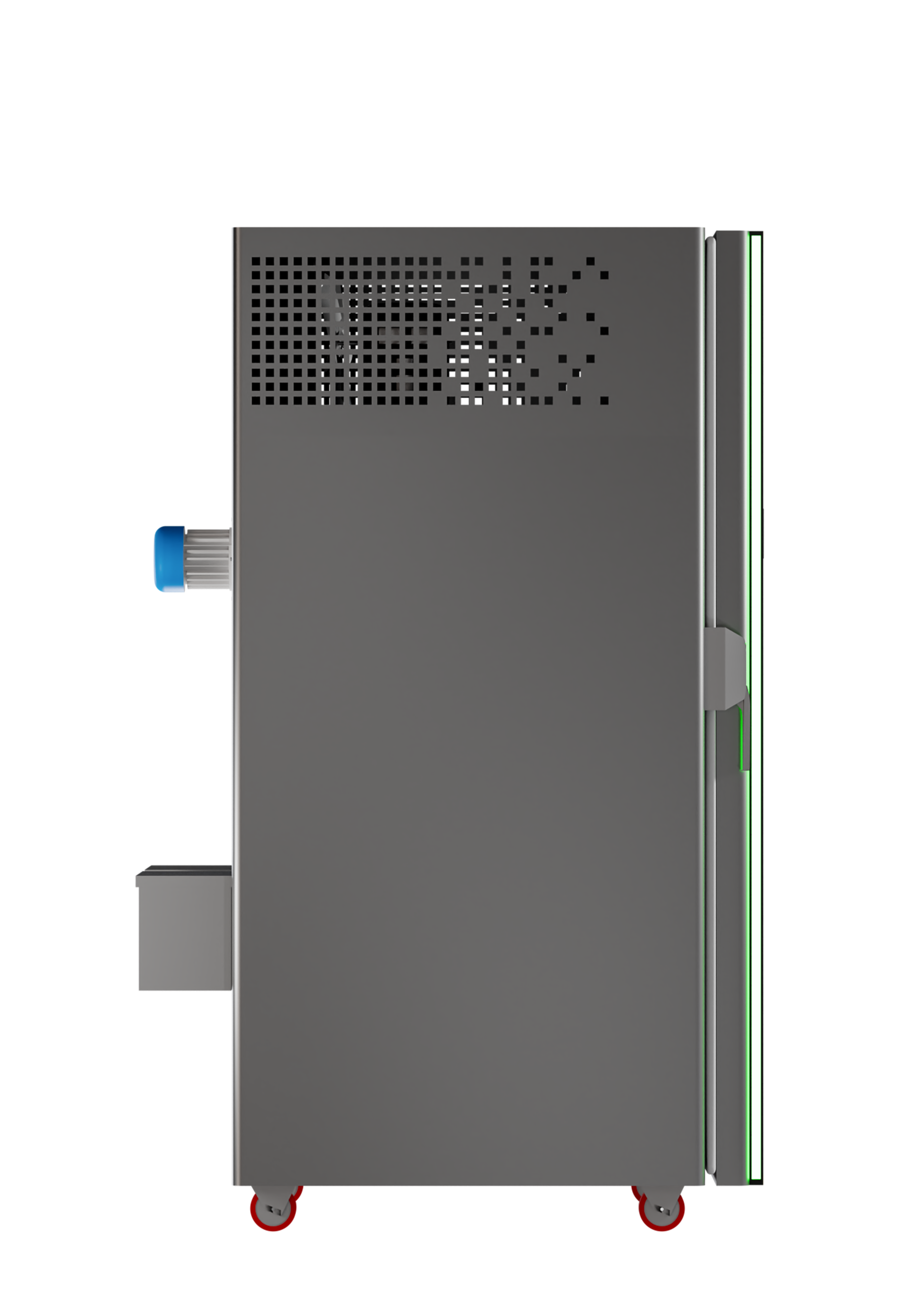

Side View

Precision-Engineered Chambers for Reliable Stability Testing and Compliance

When it comes to stability testing, compliance isn't optional—it's critical. Nihaar Equipment's Reach-In Stability Chambers are engineered to exceed the most stringent global standards, including ICH Q1A (R2), US-FDA 21 CFR Part 11, WHO, and EU GMP. Designed for pharmaceutical, biotech, and industrial applications, our chambers guarantee precise temperature and humidity control, ensuring your products meet regulatory approval without compromise.
